Washdown Fittings

SKU: WDV-1-DP
$39.59

Features

Attractive, Easy to Install Wash Down Fittings

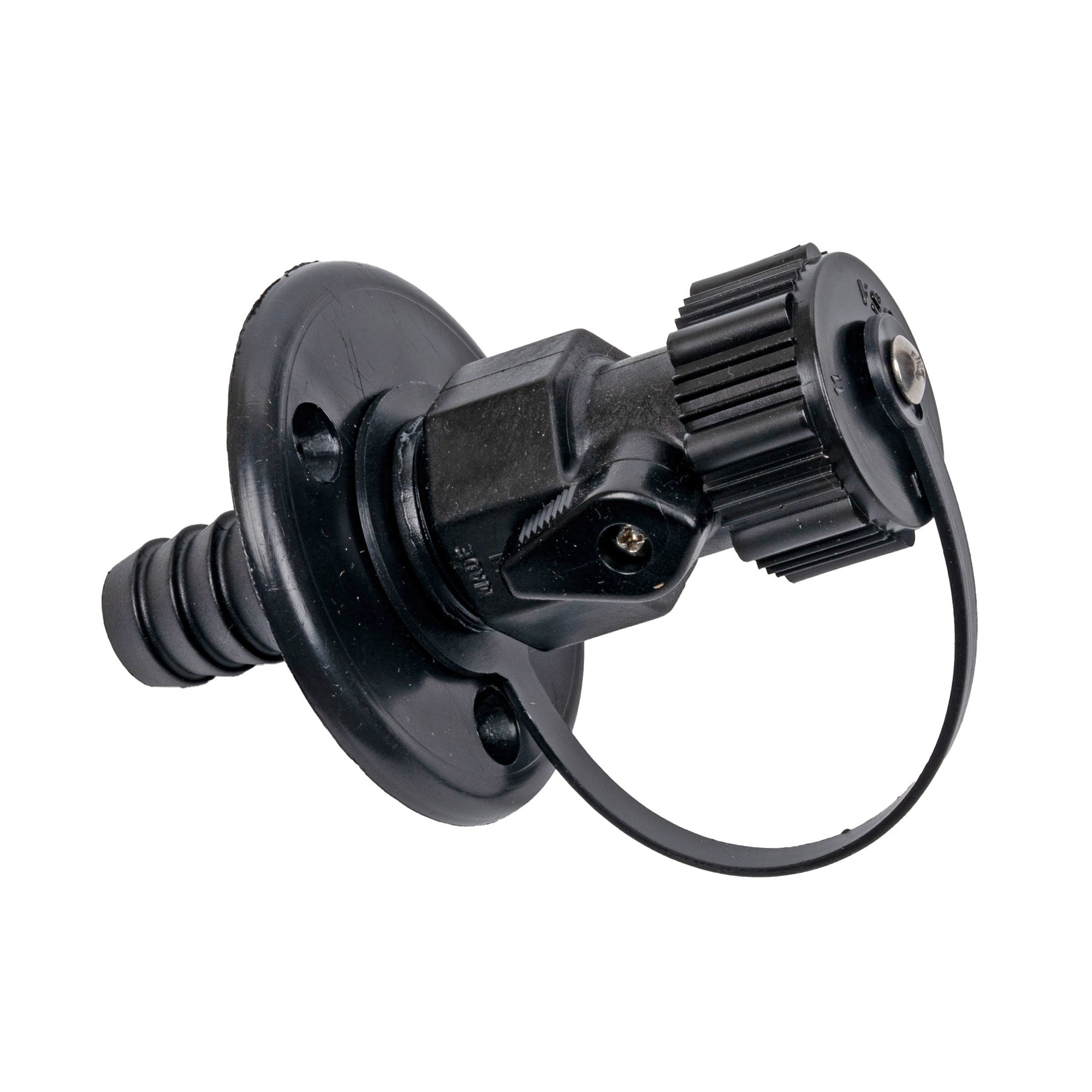

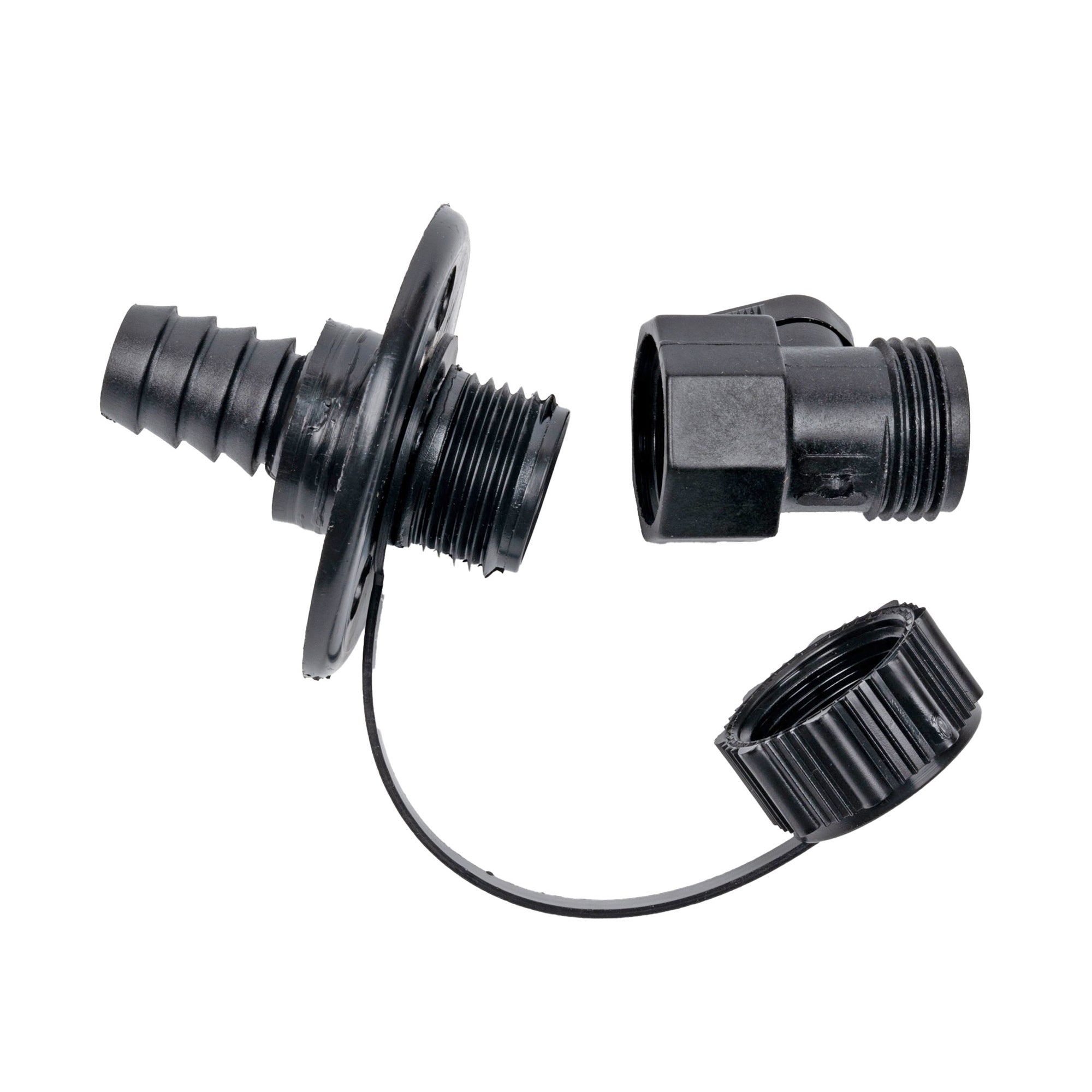

A bulkhead mounted washdown fitting that is inexpensive, functional, easy to install, and rust proof. This injection molded plastic fitting is 2 1/4" in diameter and mounts in 1 1/4" diameter hole with 3 countersunk screws. Barbed hose fitting connects 3/4" inside diameter tubing. Standard hose threads with a protective cap which has a retaining strap is standard. Available with or without a shut-off valve.

  • Injection molded, UV stable, rust proof
  • Standard garden hose thread outlet
  • Inlet fits 3/4" marine hose
  • Protective cap with retainer
  • Flange dimension 2-1/4" OD
  • Installation in 1-1/4" hole
  • Available in straight and 90 degree inlet configurations
  • Available in black or chrome plated flange

Wash Down Fittings
Part # Description Flange Color
WD-1 Wash down fitting, straight, no shut-off valve Black
WD-1CP Wash down fitting, straight, no shut-off valve Chrome
WDV-1 Wash down fitting, straight, with shut-off valve Black
WDV-1CP Wash down fitting, straight, with shut-off valve Chrome

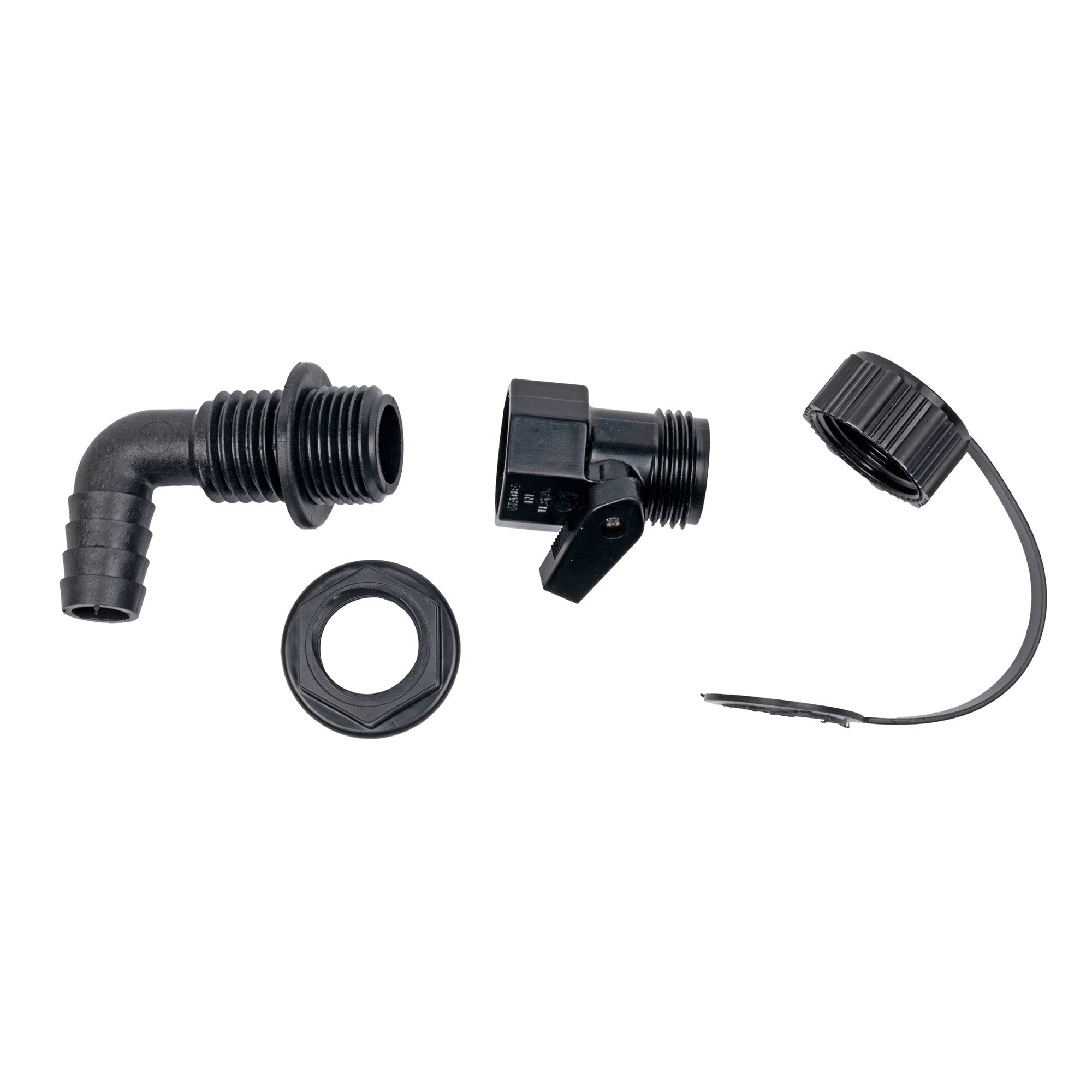

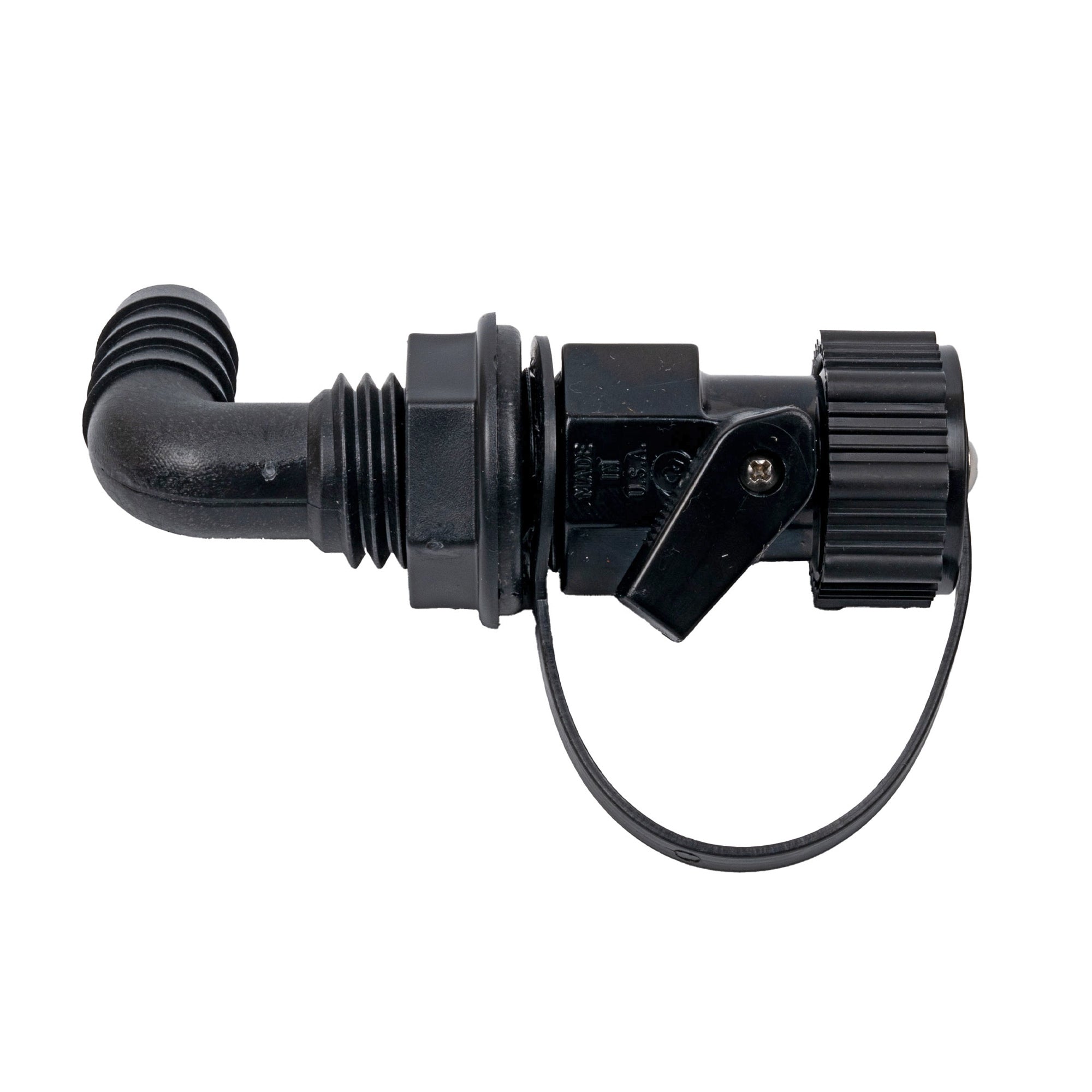

WDV-90 Wash down fitting, 90 degree, with shut-off valve Black

OEM/Bulk Product Name Distributor Packaged
WDV-1-DP Wash Down Fitting - Straight with Shut-off Valve - Black WDV-1-DP
WDV-1CP-DP Wash Down Fitting - Straight with Shut-off Valve - Chrome WDV-1CP-DP
WDV-90 Wash Down Fitting - 90 Degree with Shut-off Valve - Black WDV-90-DP
WD-1 Wash Down Fitting - Straight without Shut-off Valve - Black WD-1-DP
WD-1CP Wash Down Fitting - Straight without Shut-off Valve - Chrome WD-1CP-DP

Note:

Standard Pack:
OEM - Bulk 50/Box
Distributor Packaged - Skin Pack 12/Box
