Features

• Direct Replacement Design: Developed to replace worn or damaged relay wiring harnesses for hydraulic jack plates, restoring smooth height and trim adjustments.

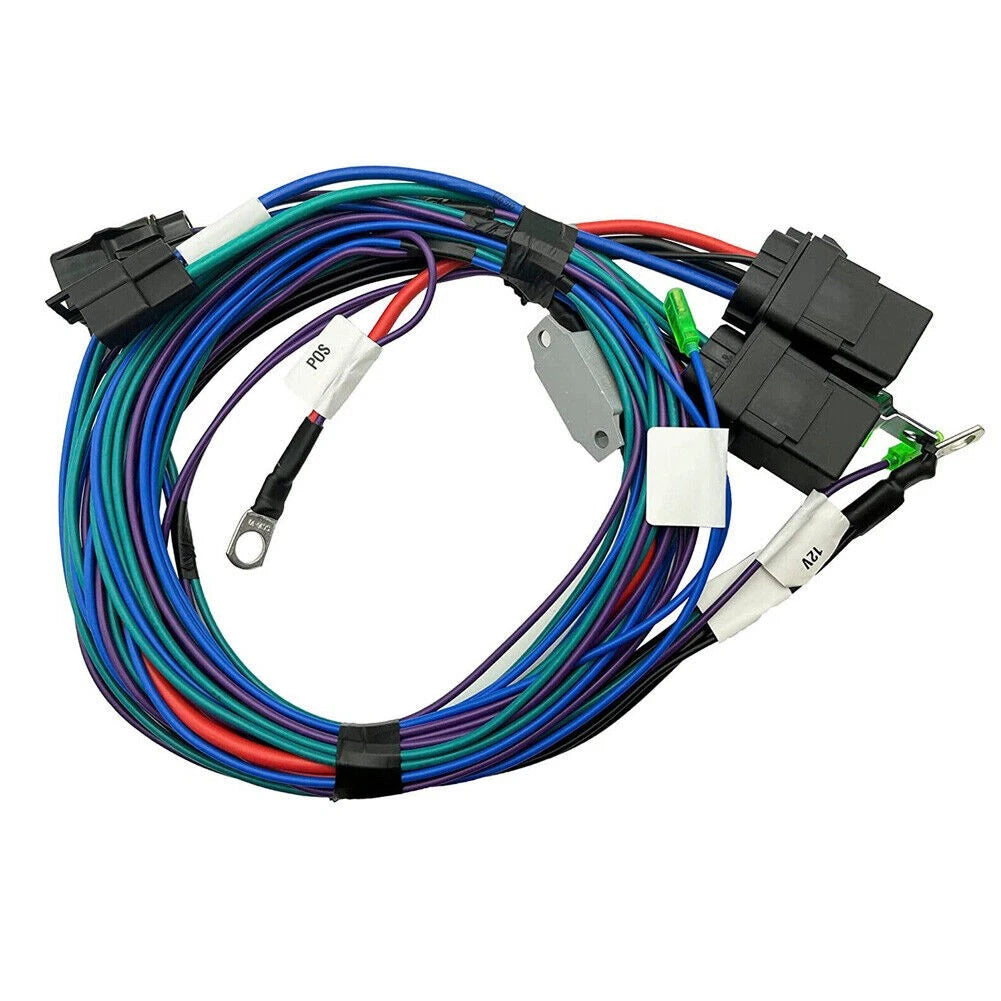

• Pre-Labeled Wire Leads: Comes equipped with clearly labeled wires for "POS", "12V", "UP", and "UPR" to streamline identification and connection during setup.

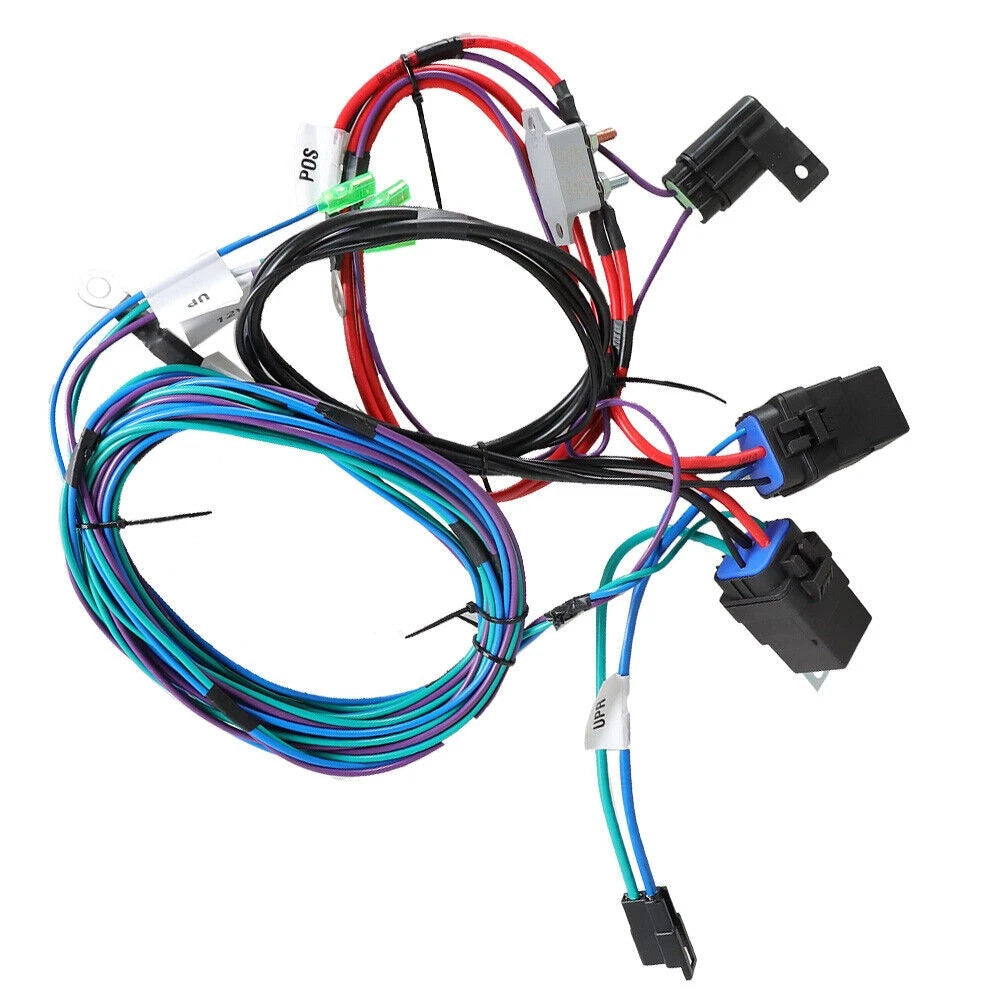

• Dual Relay Assembly: Includes two pre-wired black relay modules configured to handle the directional Up/Down switching functions of your jack plate system.
• Integrated Circuit Protection: Features an inline terminal block/breaker to guard electrical connections against potential overcurrent scenarios.

This replacement relay wiring harness kit provides a reliable solution for rebuilding or servicing your outboard motor's hydraulic jack plate system. Engineered to deliver stable electrical performance, the harness ensures precise control over your engine's vertical positioning and trim adjustments on the water.

The comprehensive assembly features color-coded, bundled wiring combined with pre-wired dual relays and essential terminal connections. Designed specifically for marine jack plate applications, it serves as a straightforward replacement part to restore system reliability and maintain peak performance.

Specs

• Product Type: Jack Plate Relay Assembly Wiring Kit
• Wiring Configurations: Pre-labeled leads (POS, 12V, UP, UPR)
• Components Included: Dual relay sockets, wiring harness bundles, inline circuit block, ring terminals
