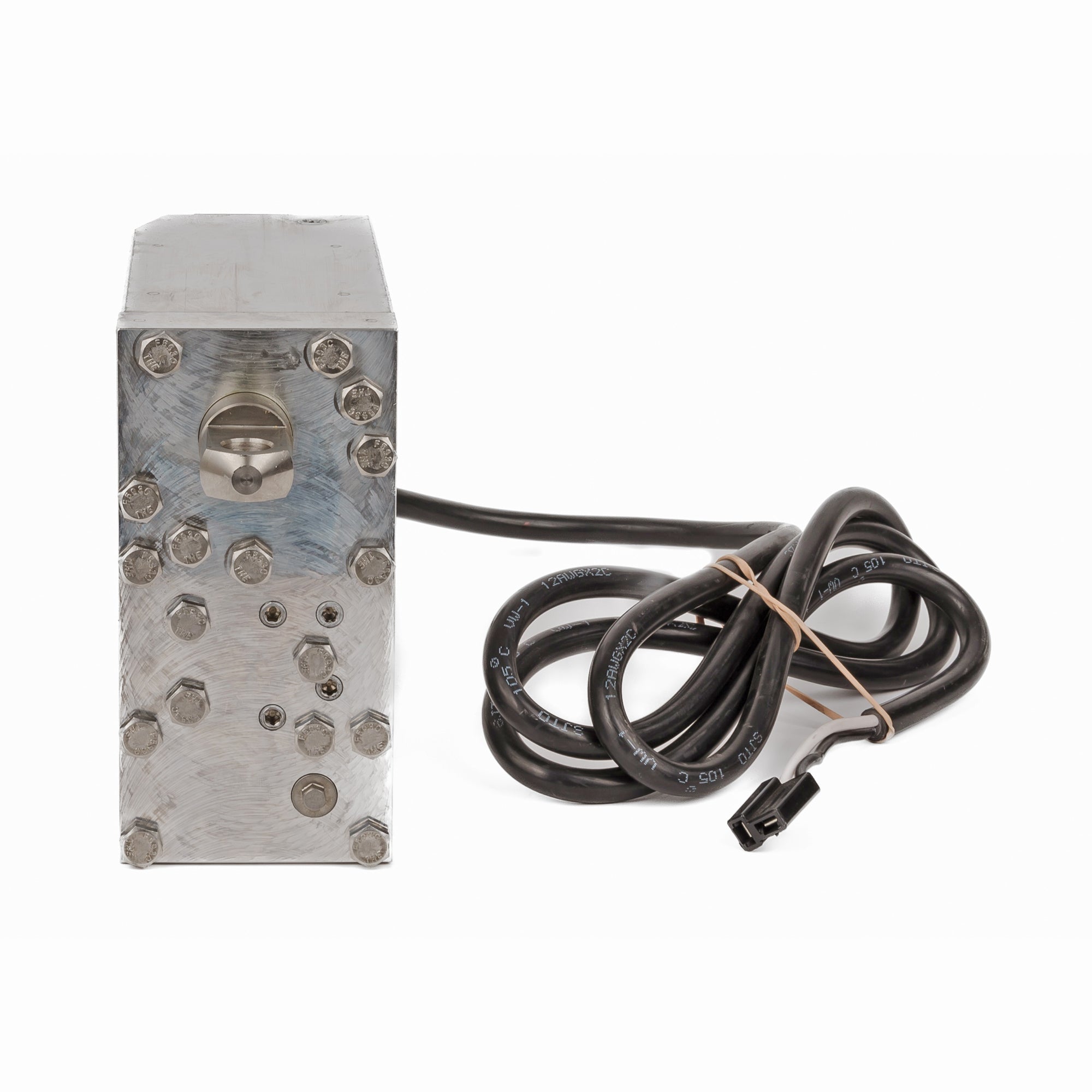

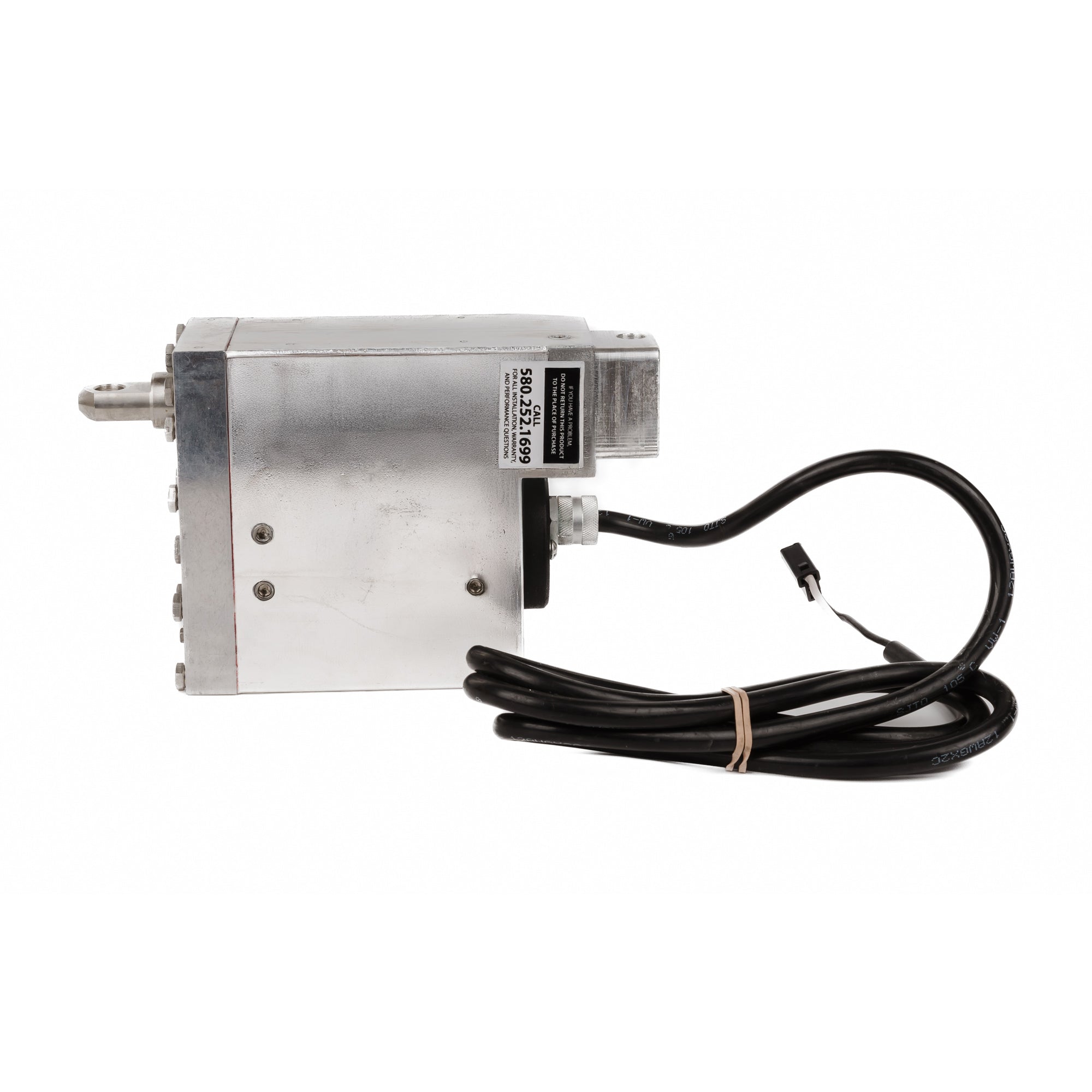

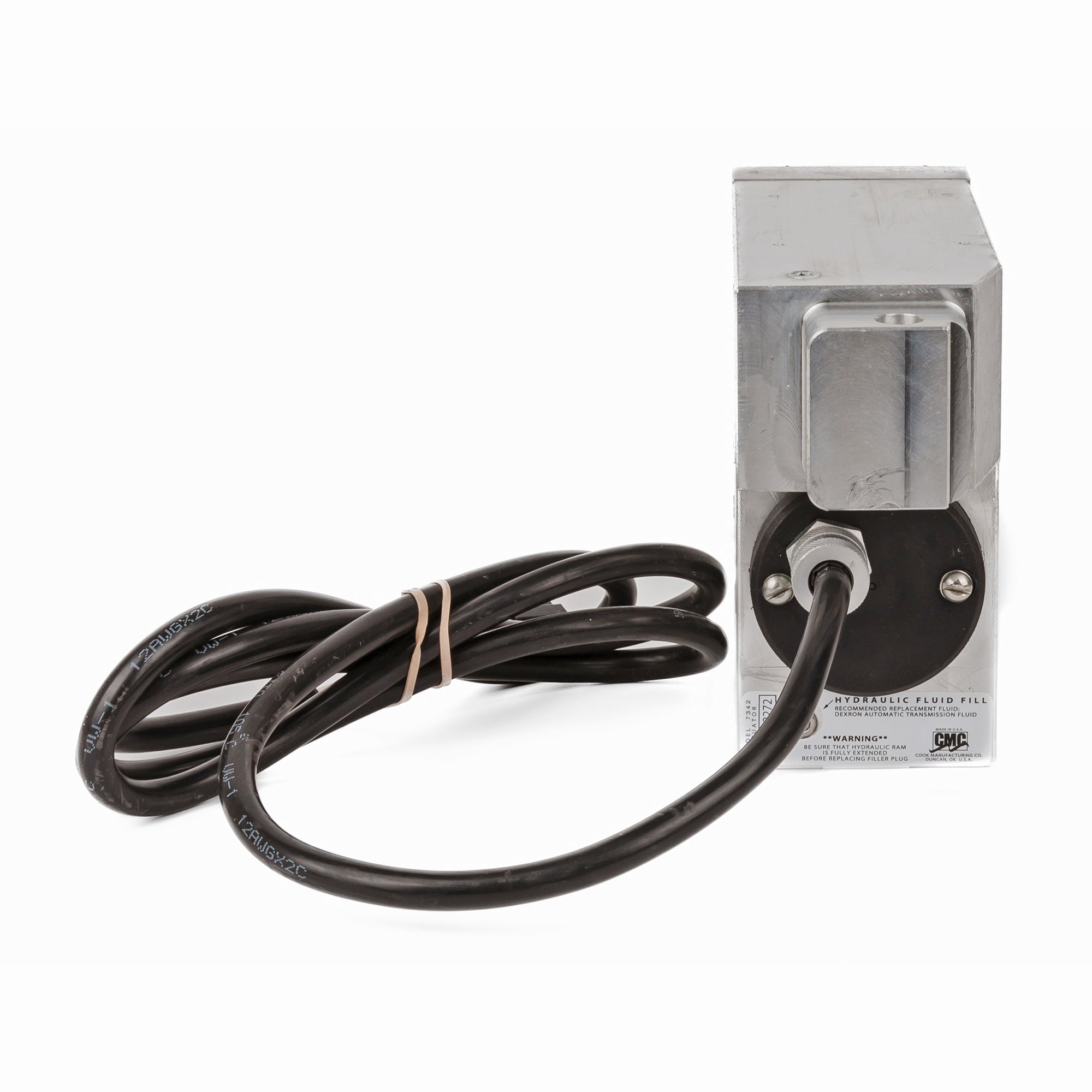

CMC High Speed POWER-LIFT Actuator

By CMC
SKU: 7342
$659.99

Features

Replacement high speed hydraulic actuator for:

  • CMC Power-Lift hydraulic jack plates (models: 61301, 61302, 65301, 65302)
  • CMC PT-35 Tilt and Trim (model: 52100)
  • T-H Marine Hydro-Jacker jack plates (models: HYJ-6HSC-DP, HYJ-10HSC-DP)
  • T-H Marine ATLAS Micro Jacker (model: AHJM-4-DP)

The CMC High Speed POWER-LIFT Actuator is a patented High Speed Actuator for High Speed Power-Lift and Hydro-Jacker models

This actuator will fit all late model CMC Power-Lift HS (high speed) hydraulic jack plates, and T-H Marine Hydro-Jacker HS (high speed) hydraulic plates that have the one piece motor/hydraulic actuator assembly. Not for"standard" versions of hydraulic jack plates - but can be used to retrofit standard versions to higher speed version.

Hydraulic Actuators are completely self contained with their own fluid reservoir. They incorporate the pump, motor, reservoir and cylinder all in the same body. This eliminates the need for multiple hydraulic components such as hoses, pumps and cylinders.

Actuator can be utilized in almost any type of environment. Made of 100% non-ferrous materials and are totally submersible. They contain a no-leak seal and wiper that keeps dirt and water out of the working parts.

Full Specifications Click Here

Read CMC Marine's Warranty Policy Here

OEM/Bulk Product Name Distributor Packaged
7342 High Speed Hydraulic Actuator (Hydro-Jacker, CMC Power-Lift, ATLAS Micro)

Specs

  • Motor type: Permanent Magnet 12VDC
  • Fluid capacity: 21 cu in (0.7 pint)
  • Weight with fluid: 12.5 lbs
  • Material: 6061-T6 aluminum alloy
  • Fasteners: 18.8 Stainless Steel
  • Stroke length: 5"
  • Thrust (Extend): 3141 lbs min
  • Thrust (Retract): 1744 lbs min
  • Rate of Travel: 37 in per min

Customer Reviews

Based on 26 reviews
85%
(22)
8%
(2)
8%
(2)
0%
(0)
0%
(0)
J
James P.
Didn't last long. No labor warranty

Ordered unit brand new installed on the boat. Lasted one day. Customer service is excellent and should have a new one any day but the fact that I have to reinstall is not good.

C
Cindy H.
Great

Actuator burnt motor they are replacing for shipping only. This is out of warranty but not used much . Great to deal with a company that stands behind their product

S
S. P.
Trim Motor

Ordered part and received quickly and it was packed extremely well for shipping. Removing and replacing per well written instructions was fairly easy and quick. The new motor works better and faster than the original motor.

J
Jarrod D.
Hands Down the Best Service and Equipment

Sent an email about the issue I was having along with a picture to Jeremy at CMC on Thursday morning. All Jeremy asked for was the serial number. Friday afternoon (the next day) a brand new actuator was delivered to my doorstep.
Jeremy at CMC hands down the best customer service and professionalism.

K
Kenneth B.
Cmc

As bra 1000 billigare än hemma
