All Purpose Drains / Hatch Drains
By T-H Marine
SKU: APD-290F-DP
$8.99
These all-purpose drains provide a low-cost, efficient solution for water drainage in various applications, including coolers and livewell drains. With their low-profile design, they ensure complete drainage while being easy to install.
- Features a low profile flat or concave head for effective drainage.
- Requires a 1-3/8" diameter hole and fits standard 3/4" marine hose, except APD-118.
- Available in both black and white colors and in straight or 90-degree versions.
Features
- Low Profile Flat or Concave Head for complete drainage
- Perfect for cooler drains, livewell drains, and fiberglass compartments
- Requires 1-3/8" diameter hole
- Available in black and white
- Fit 3/4" marine hose (except APD-118 which fits 1-1/8" hose)
These molded drains, available in straight and 90 degree versions, offer a low cost method to drain water from virtually anywhere. They have a very low profile concave head to allow complete drainage. Drains mount easily in a 1-3/8" diameter hole and are secured with the molded nut that is included. Hose barbs fit 3/4" hose for routing of drainage.
| OEM/Bulk | Description | Distributor Packaged |
|---|---|---|
| APD-1 | 3/4" All Purpose Drain, Straight, Concave Head, Black | APD-1-DP |
| APD-2 | 3/4" All Purpose Drain, Straight, Concave Head, White | APD-2-DP |

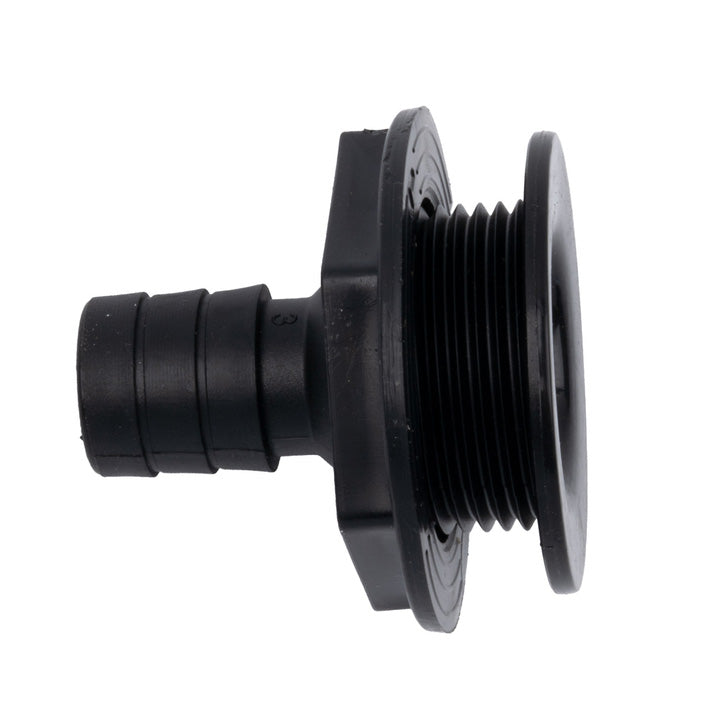

| APD-1F | 3/4" All Purpose Drain, Straight, Flat Head, Black | APD-1F-DP |
| APD-190-DP | 3/4" All Purpose Drain, 90 degree, Concave Head, Black | APD-190-DP |
| APD-290 | 3/4" All Purpose Drain, 90 degree, Concave Head, White | APD-290-DP |

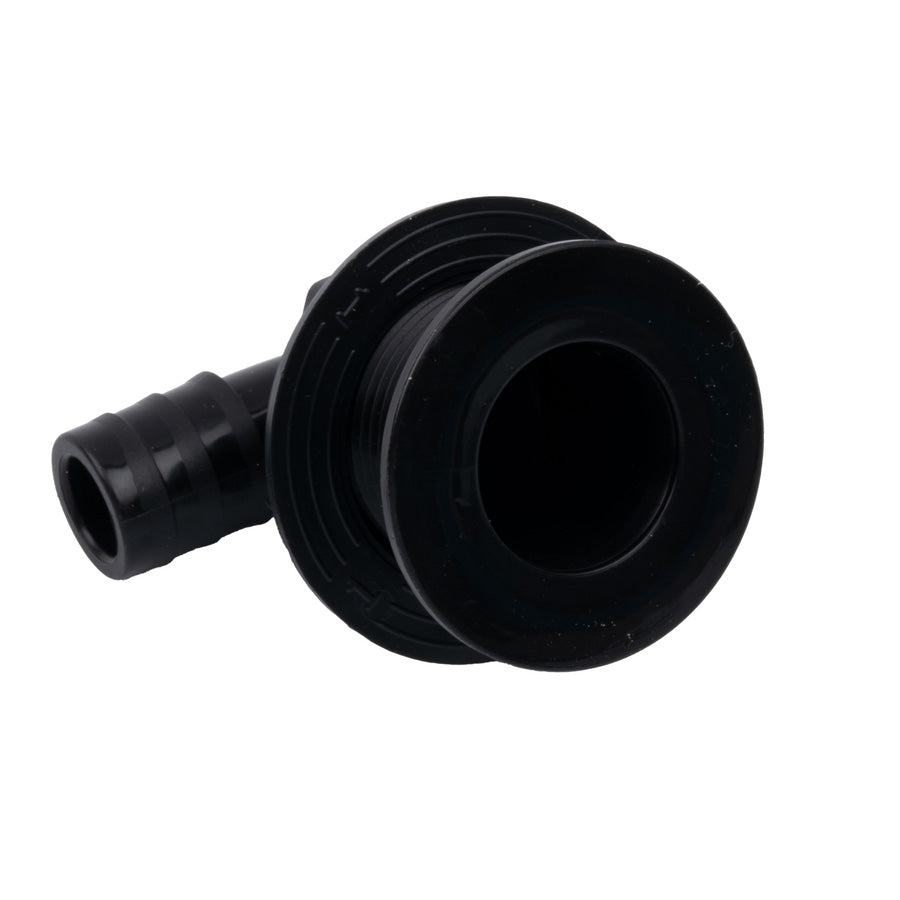

| APD-190F | 3/4" All Purpose Drain, 90 degree, Flat Head, Black | APD-190F-DP |
| APD-290F | 3/4" All Purpose Drain, 90 Degree, Flat Head, White | APD-290F-DP |
| APD-118 | 1-1/8" All Purpose Drain, Straight, Concave Head, Black | APD-118-DP |
| PP-118-DP | Push-In Plug for 1-1/8” Thru-Hull and All Purpose Drains | PP-118-DP |
Specs
| Black # | White # | Description | A | B | C | D |
|---|---|---|---|---|---|---|
| APD-1 | APD-2 | Straight fitting - concave head | 1-3/4" | 3/4" | 3/4" | 2" |
| APD-190 | APD-290 | 90 degree fitting - concave head | 1-3/4" | 1/2" | 3/4" | 2" |
| APD-190F | APD-290F | 90 degree fitting - flat head | 1-7/8" | 7/8" | 3/4" | 2-1/4" |
| APD-190FT | N/A | 90 degree fitting - flat head - threaded | 1-7/8" | 7/8" | 3/4" | 2-1/4" |
| APD-118 | N/A | Straight fitting - concave head (1-18" hose) | 1-3/4" | 3/4" | 1-1/8" | 2" |
| PP-118 | N/A | Vinyl Push In Plug fits all APDs |
