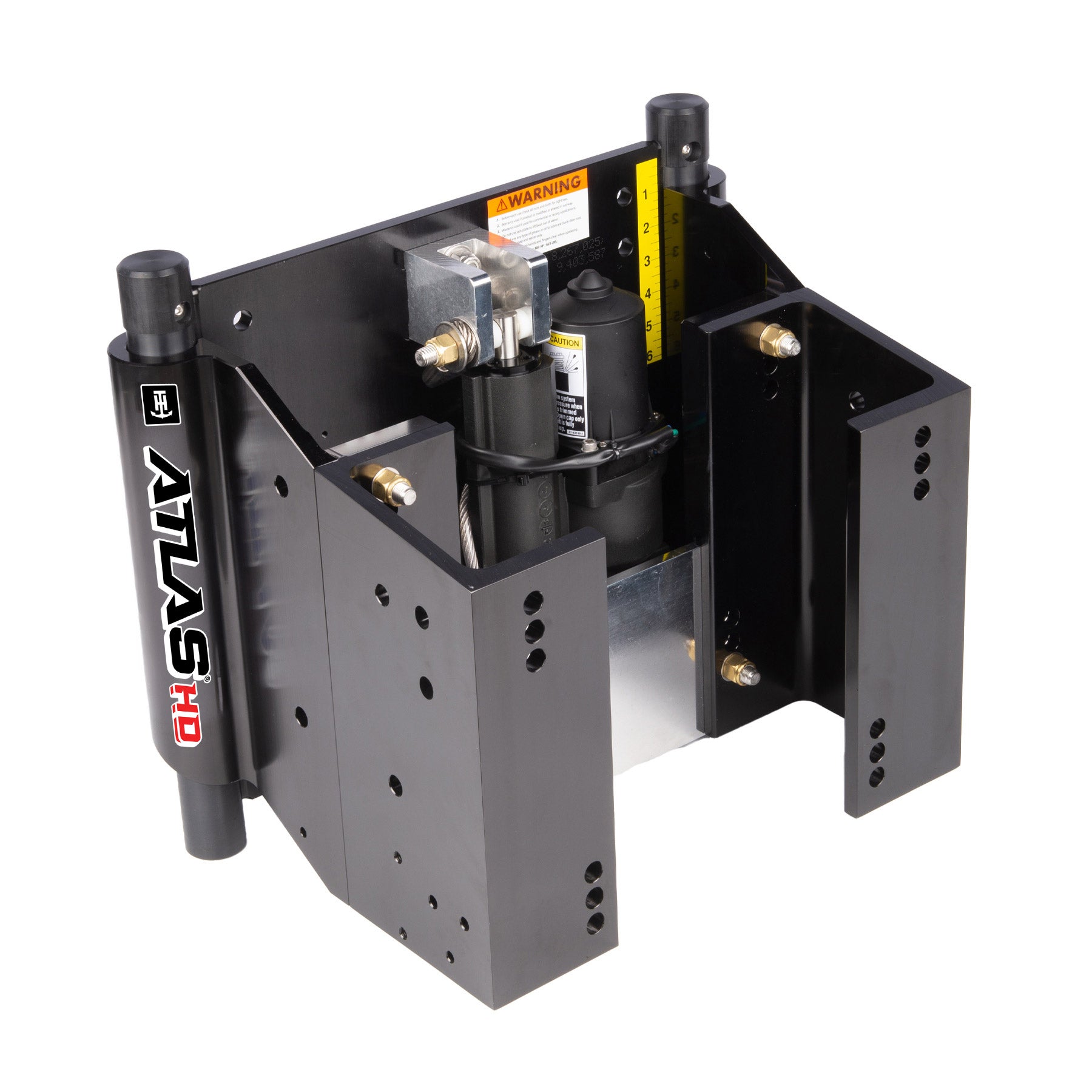

ATLAS™ Heavy Duty Hydraulic Jack Plate - Black

SKU: AHJ-4VHD-B-DP
$3,074.00

The ATLAS™ Hydraulic Jack Plate by T-H Marine is a cutting-edge solution for heavy outboard engines, delivering seamless lifting action and reliability. Ideal for professional anglers and recreational boaters alike, this jack plate revolutionizes boat performance.

  • Designed to accommodate engines up to 300hp and 625 lbs. dry weight.
  • Innovative rod and slot lifting design ensures trouble-free operation.
  • Adjusts from 5 to 7 inches in height and elevates in under 8 seconds.

Features

NOTE: SOME JACK PLATES ARE MADE TO ORDER, WHICH CAN TAKE UP TO 4-6 WEEKS. PLEASE CONTACT US FOR STOCK INFORMATION.

Comes with relay harness and rocker switch. Contact your boat manufacturer or local dealer for setback recommendation for your particular boat and also the affects adding a jack plate can have on your boa

T-H Marine's ATLAS™ Hydraulic Jack Plate is now available in a "HEAVY DUTY" upgrade.T-H Marine's ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the new ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp.

Transom side of the atlas is 16 3/8" wide x 12 1/2" tall"

5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE

  • ATLAS™ is truly the best hydraulic jack plate in the world
  • ATLAS™ is factory installed by more boat manufacturers than any other plate
  • ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
  • ATLAS™ is the #1 selling hydraulic plate in the world - sold & serviced by more outlets
  • ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China

6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER

  • ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate - the competition copied
  • ATLAS™ was the first plate to offer predrilling for shallow water anchors - the competition copied
  • ATLAS™ was the first and only plate that did not require regular grease lubrication - the competition design cannot do that
  • ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
  • ATLAS™ was the first plate to offer a very simple actuator replacement in the field
  • ATLAS™ was the first major development in hydraulic jack plates in over a decade - spurring hydraulic jack plate improvement

NOTE: mounting bolts are not included

Please note: The yellow ruler sticker is just a visual reference for the driver.  On the Heavy Duty Atlas jack plates the yellow ruler sticker will show approximately 4 ¼” of lift. That is due to the black polymer rods being taller on the Heavy Duty Atlas jack plates and the 1” of lift that is built in to the plate.  The standard Atlas jack plates will show 5” of lift, due to the 1” of lift that is built in to the plate.  To confirm the 5 ¾” of hydraulic lift just raise the jack plate all the way up and measure the hydraulic actuator piston.


OEM/Bulk


Product Name

Distributor Packaged

AHJ-4VHD-B-DP


AHJ-4VHD-B-DP

AHJ-6VHD-B-DP


AHJ-6VHD-B-DP

AHJ-8VHD-B-DP


AHJ-8VHD-B-DP

AHJ-10VHD-B-DP


AHJ-10VHD-B-DP

AHJ-12VHD-B-DP


AHJ-12VHD-B-DP

AHJ-14VHD-B-DP


AHJ-14VHD-B-DP


Specs

  • Max Weight: 625 lbs
  • Max Horsepower (Heavy-Duty Version): 400 hp
  • Width: 16 3/8"
  • Height: 12 1/2"

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
50%
(1)
0%
(0)
0%
(0)
M
M.J.
I have a 12” one, and the black came off, thinking the coating is defective~

The black came off of my jack plate where the boat sets in the water I don’t know if maybe the surface wasn’t prepped properly or iron pig just came right off so it’s black and silver now looks really terrible and I have a new Skeeter Boat. Seems that she wouldn’t want to get a black one if the black comes off because it looks terrible. Or perhaps mine has a defective Coating??

R
Ronald S.
Verado install on Lund GL

Looks good, works good and install was a piece of cake. It was on backorder for a couple of weeks, but very much worth the wait. Bought the 4 inch setback which still has the integrated pump. Awesome product.
