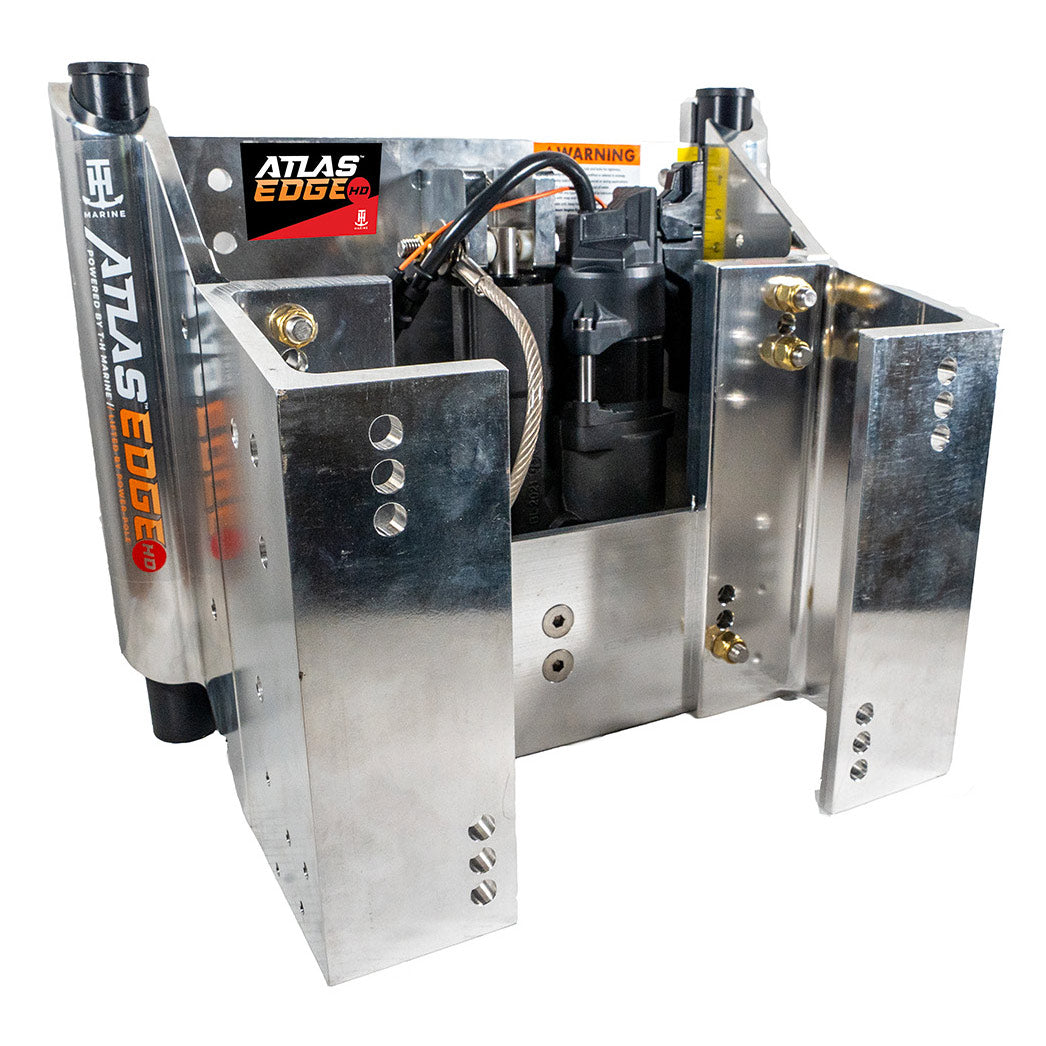

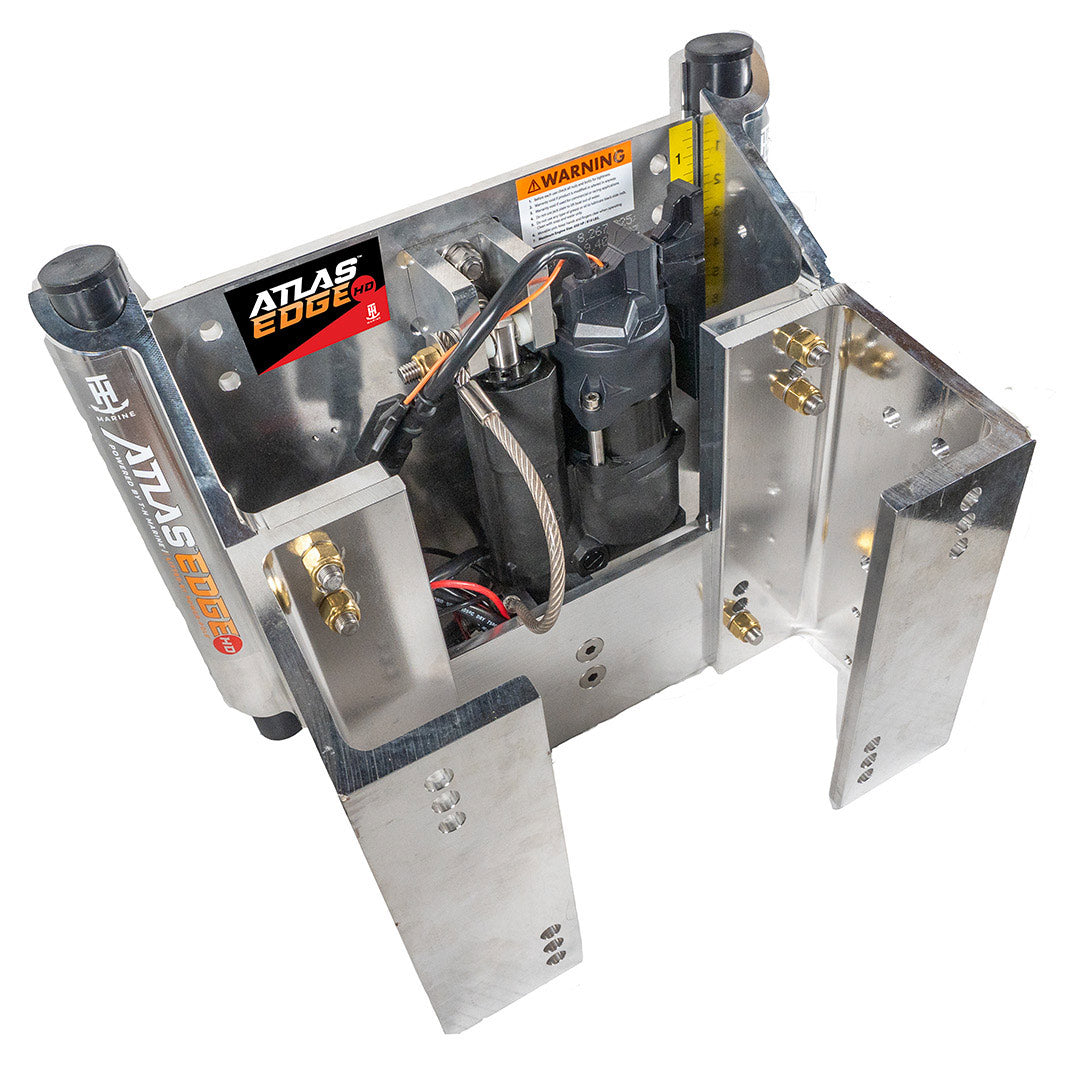

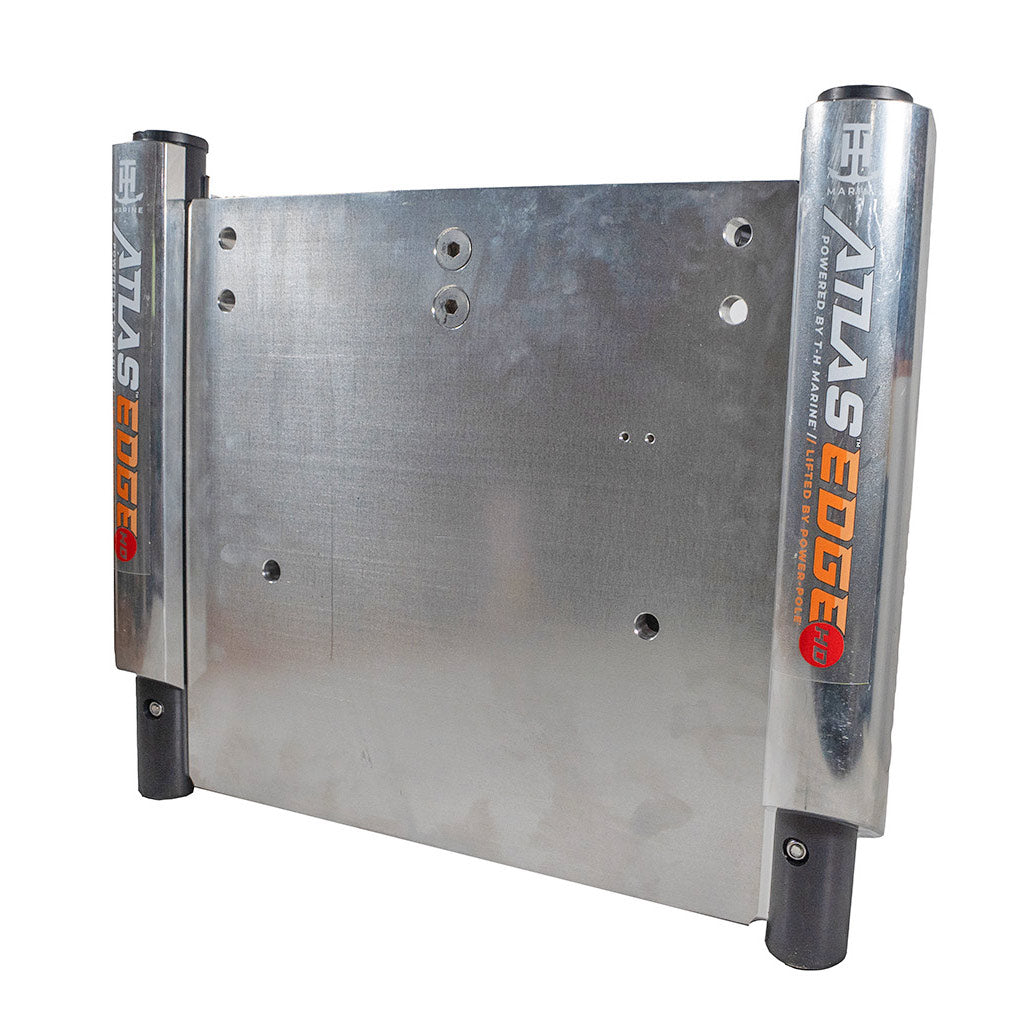

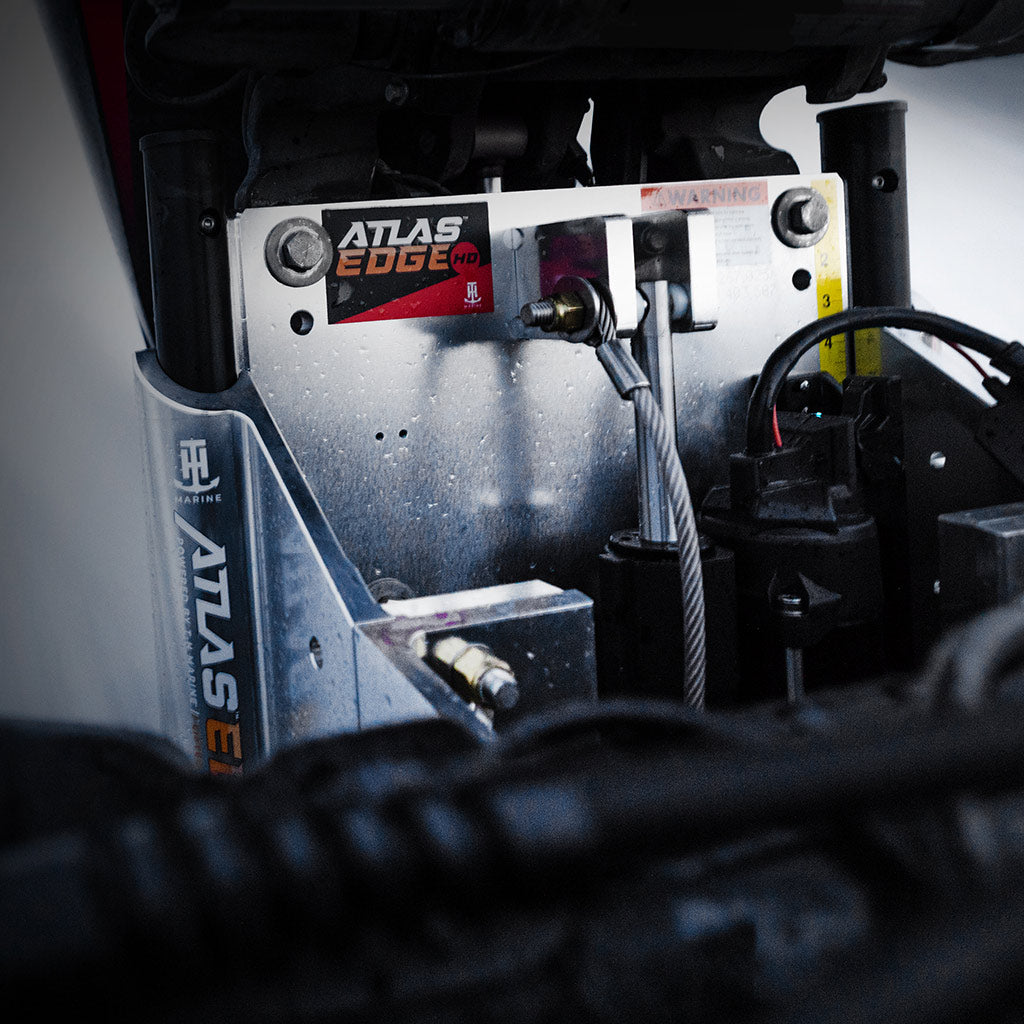

ATLAS™ EDGE Setback Hydraulic Jack Plate - Standard, Polished

By T-H Marine
SKU: AHJE-4V-DP

The ATLAS™ EDGE Standard Hydraulic Jack Plate delivers fast, precise outboard height adjustment for improved control and on-water performance. Its brushless motor and intelligent Smart Gauge provide smooth operation for engines up to 300 HP and 625 lbs.

  • Brushless motor for fast, maintenance-free operation
  • Smart Gauge with speed and height controls
  • Rated for outboards up to 300 HP and 625 lbs.
This product is unavailable
More Details Right

Features

  • Powerful brushless motor provides smooth, responsive height adjustment
  • Smart Gauge offers clear, intuitive control of jack plate operation
  • Three selectable lift speeds: Slow, Medium, and Fast
  • Three Quick Set positions provide rapid access to saved engine heights
  • Light-sensing display automatically adjusts for day or night visibility
  • Lift Control allows easy manual adjustment and rapid movement
  • Heavy-duty aluminum construction for demanding marine environments
  • Supports outboard engines up to 300 HP and 625 lbs. dry weight
  • Includes relay harness and rocker switch
  • Manufactured in the U.S.A.

Introducing the ATLAS™ EDGE Standard Hydraulic Jack Plate—the next generation of outboard height control from T-H Marine™ and Power-Pole®. Designed for serious performance, ATLAS EDGE combines fast, precise adjustment with intelligent controls that help boaters adapt to changing water, load, and operating conditions.

Its brushless motor delivers smooth, responsive operation without routine motor maintenance. Whether you are fine-tuning engine height for better efficiency or making a rapid adjustment as conditions change, ATLAS EDGE gives you the speed and control to stay ahead.

The integrated Smart Gauge places essential jack plate functions within easy reach. Choose between Slow, Medium, and Fast lift speeds to match your preferred level of control. Three Quick Set positions allow you to return to saved engine heights with a single tap, while double-tap functionality provides rapid movement when immediate adjustment is needed.

A built-in light sensor automatically adjusts the screen for day or night operation, providing a clear display without excessive glare. Combined with its rugged aluminum construction and polished finish, the ATLAS EDGE is built to deliver dependable performance for professional anglers and recreational boaters alike.

Specs

  • Product Type: Hydraulic setback jack plate
  • Series: ATLAS™ EDGE
  • Configuration: Standard
  • Finish: Polished aluminum
  • Available Setbacks: 4", 6", 8", 10", 12", and 14"
  • Maximum Horsepower: 300 HP
  • Maximum Engine Weight: 625 lbs. dry weight
  • Width: 16 3/8"
  • Height: 12 1/2"
  • Material: Aluminum
  • Motor Type: Brushless
  • Controls: Smart Gauge, relay harness, and rocker switch
  • Lift Speeds: Slow, Medium, and Fast
  • Saved Height Positions: Three
  • Country of Origin: Made in U.S.A.
