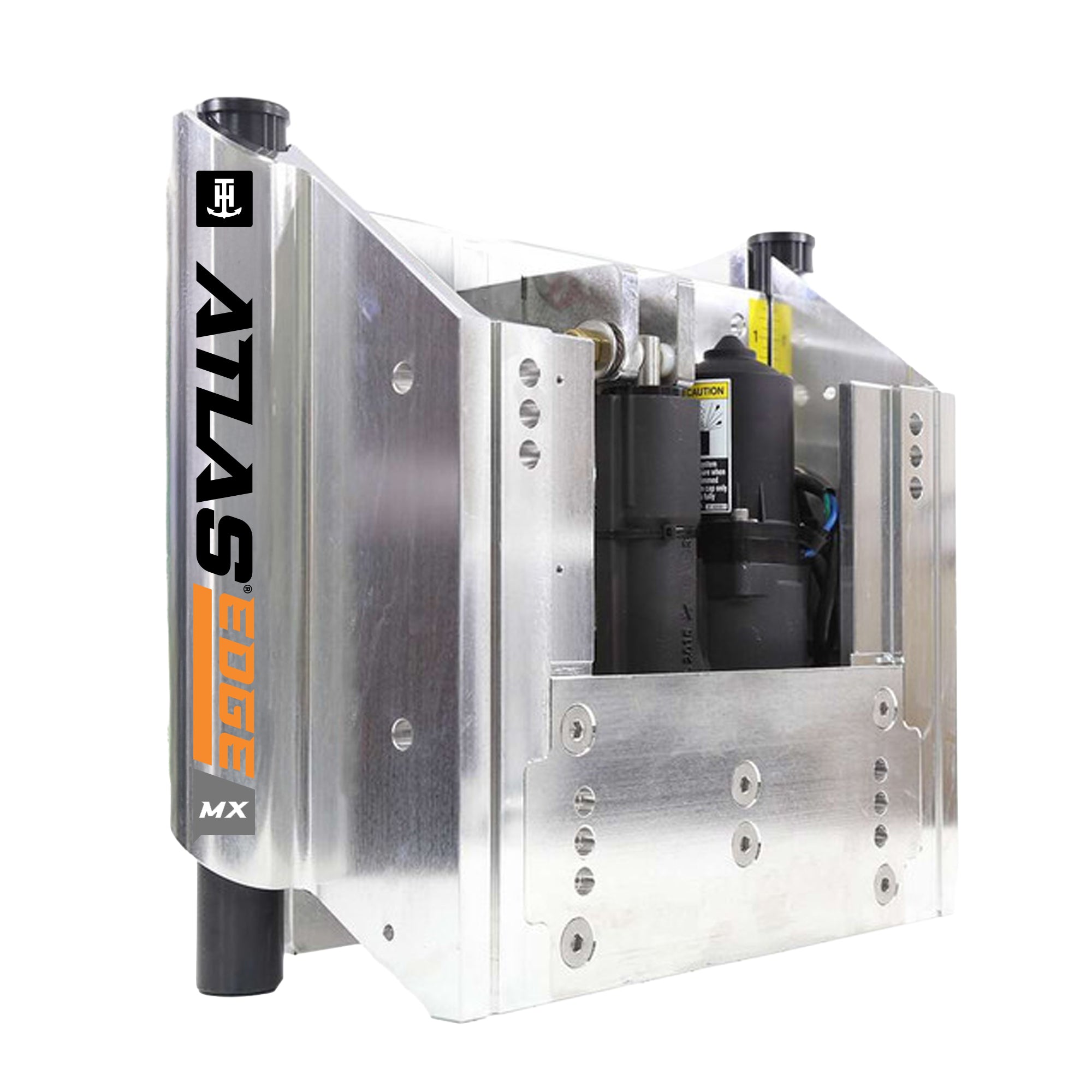

ATLAS™ EDGE MAX Hydraulic Jack Plate - Wide Frame, Polished

By T-H Marine
SKU: AHJE-6GX-DP

The ATLAS™ EDGE MAX Hydraulic Jack Plate is engineered for the largest and heaviest high-performance outboards. Its wide-frame design supports engines up to 450 HP and 1,000 lbs. while delivering fast, precise height adjustment through a brushless motor and intelligent Smart Gauge.

  • Maximum 1,000 lb. engine weight capacity
  • Rated for outboards up to 450 HP
  • Wide-frame design with a 6" setback
This product is unavailable
More Details Right

Features

  • MAX configuration designed for extremely heavy outboard applications
  • Wide-frame construction provides increased support for demanding installations
  • Rated for outboard engines up to 450 HP
  • Supports engines weighing up to 1,000 lbs.
  • Brushless motor provides smooth and responsive height adjustment
  • Sealed hydraulic unit requires no routine maintenance
  • Smart Gauge provides convenient, customizable jack plate control
  • Three selectable lift speeds: Slow, Medium, and Fast
  • Visual speed indicator displays the current lift-speed setting
  • Three custom presets provide quick access to saved engine heights
  • Double-tap controls enable rapid movement at full speed
  • Automatic light sensor adjusts the display for day or night visibility
  • 5.75" of hydraulic rise
  • 8.25"–9.75" of total rise
  • Fixed 6" setback

The ATLAS™ EDGE MAX Hydraulic Jack Plate brings the speed, intelligence, and precise control of the EDGE platform to the heaviest outboard applications. Featuring a wide-frame design and a maximum engine weight capacity of 1,000 lbs., it is built to support large outboards rated up to 450 HP.

Powered by T-H Marine™ and lifted by Power-Pole®, the ATLAS EDGE MAX combines a brushless motor with a sealed hydraulic unit for smooth, ultra-fast operation without routine motor or hydraulic maintenance. Its 5.75" hydraulic rise and 8.25"–9.75" total rise allow boaters to fine-tune outboard height for efficiency, control, and changing water conditions.

The integrated Smart Gauge puts advanced height control within easy reach. Choose between Slow, Medium, and Fast lift speeds based on water conditions, boat load, and the level of precision needed. A visual indicator shows the active lift speed, while three custom presets allow the operator to quickly return to saved engine heights.

Tap the controls to raise or lower the jack plate with precision, or double-tap for rapid full-speed movement. The display’s built-in light sensor automatically adjusts for daytime and nighttime operation, helping maintain clear visibility without distracting glare.

For boaters running the largest modern outboards, the ATLAS EDGE MAX delivers the capacity, speed, and intelligent control needed for serious performance on the water.

Specs

  • Product Type: Wide-frame hydraulic setback jack plate
  • Series: ATLAS™ EDGE
  • Configuration: MAX
  • Finish: Polished
  • Setback: 6"
  • Maximum Horsepower: 450 HP
  • Maximum Engine Weight: 1,000 lbs.
  • Hydraulic Rise: 5.75"
  • Total Rise: 8.25"–9.75"
  • Motor Type: Brushless
  • Hydraulic Unit: Sealed
  • Lift Speeds: Slow, Medium, and Fast
  • Custom Saved Heights: Three
  • Control System: Smart Gauge
