- Glide safely over submerged logs or debris at low speeds
- Offers 45 degrees of movement
- Spring returns motor to standard running position
- Standard B. I. A. hole pattern

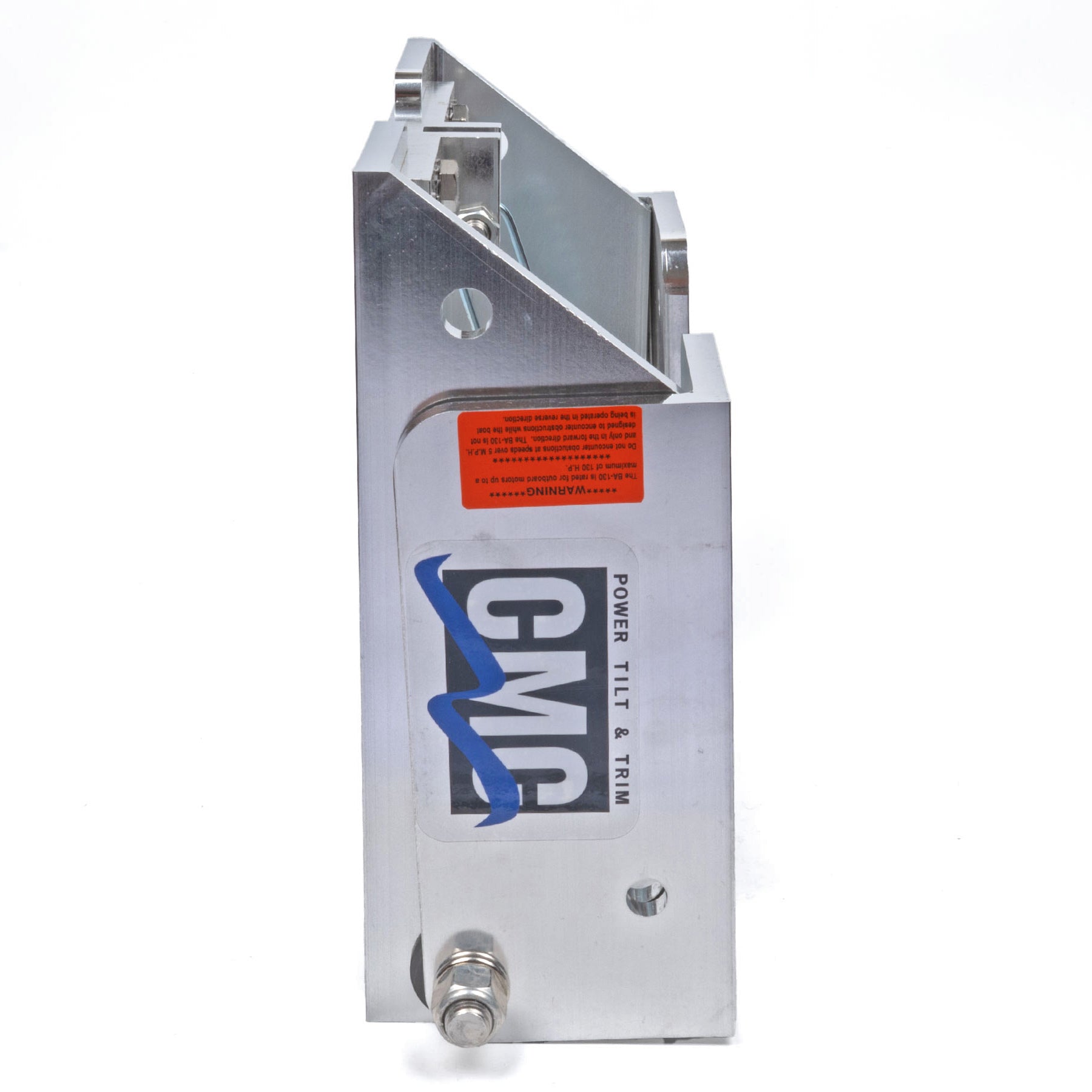

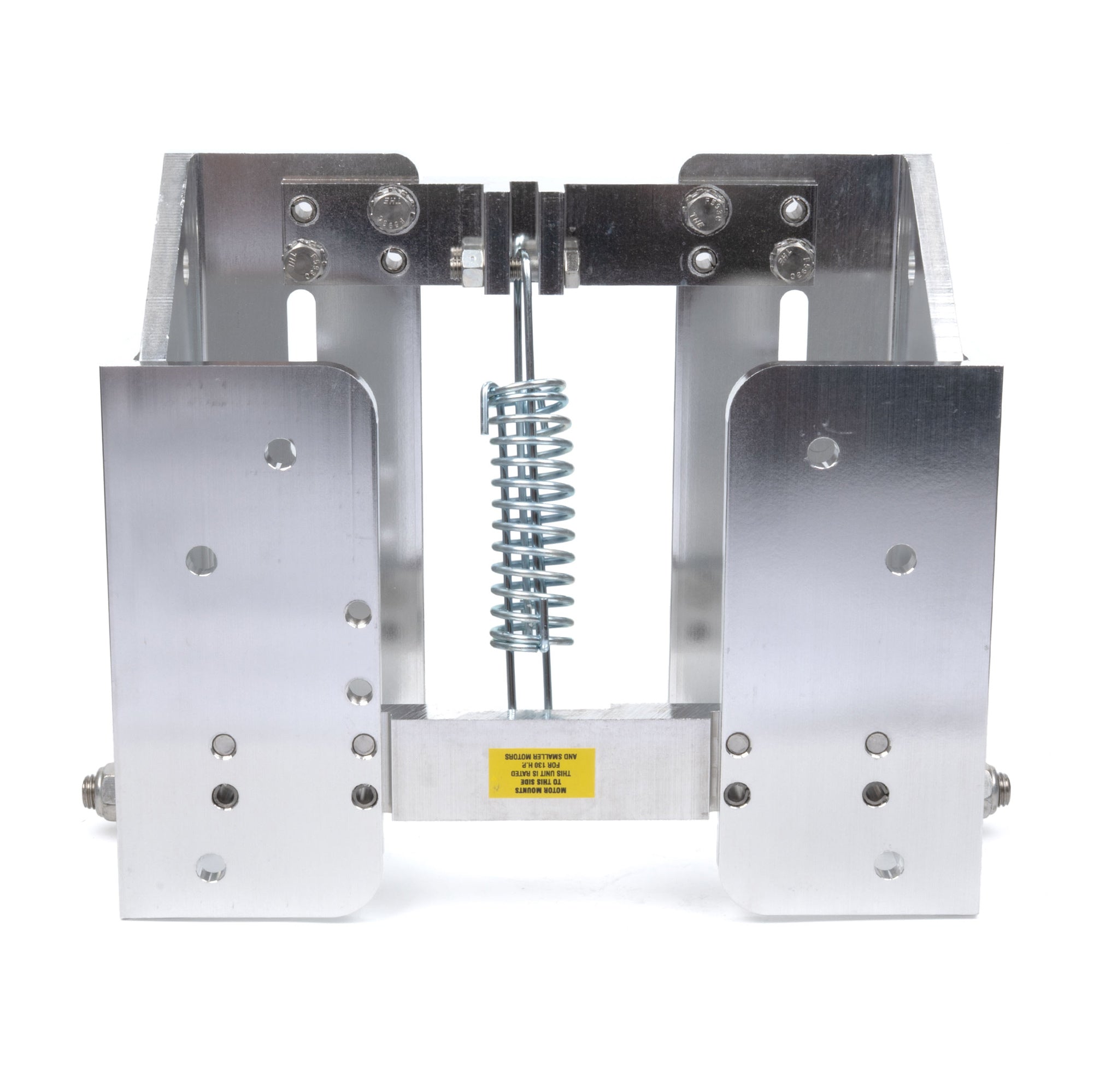

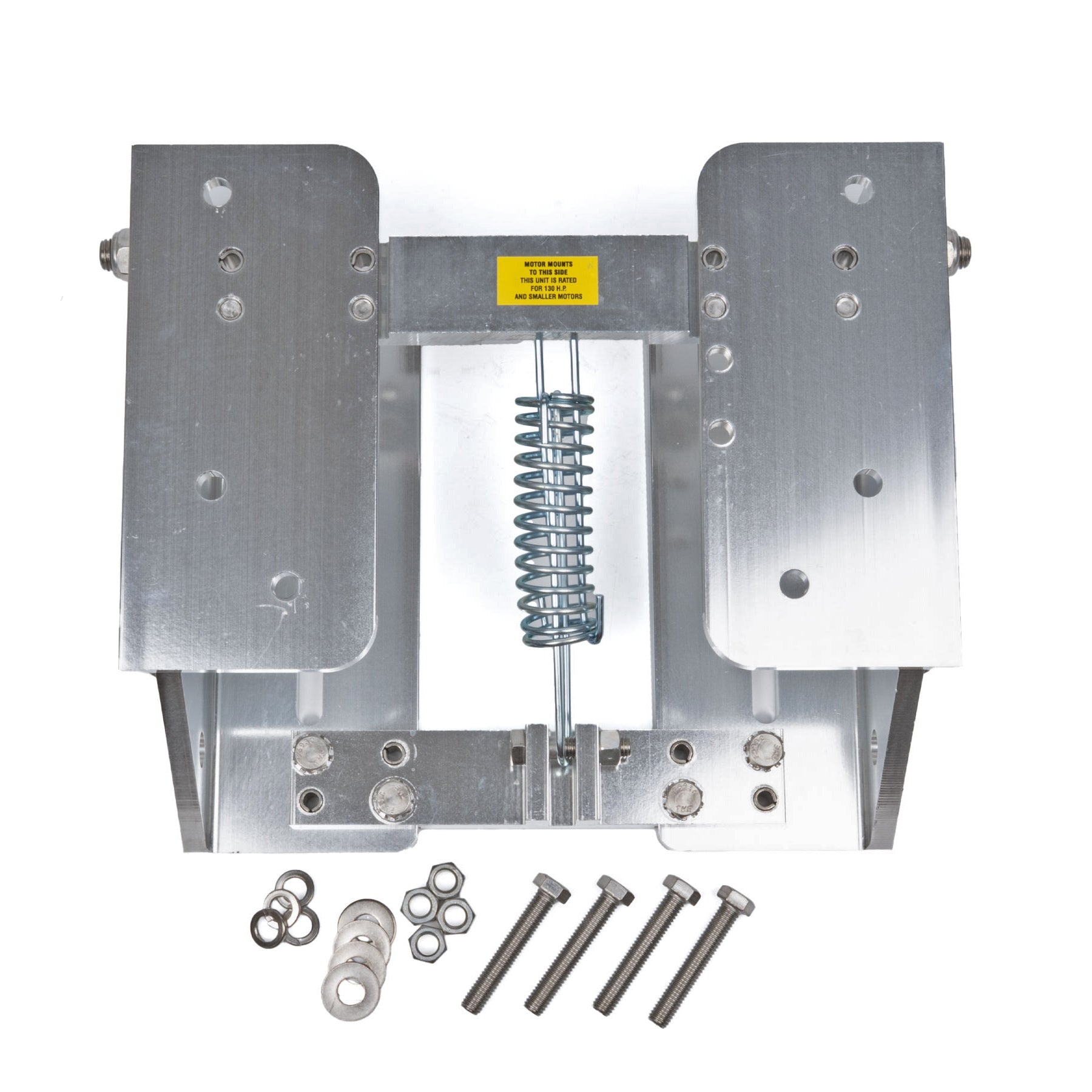

The CMC BA-130 Breakaway unit is designed for duck hunters and/or fisherman that use their boat in shallow stumpy areas. It allows small boats and motors to slide over submerged logs or debris at low speeds to get to a downed bird or your favorite fishing hole.
The BA-130 is rated for outboard motors up to a maximum of 130 H.P. The unit is mounted between the boat transom and the outboard motor. It is designed to help minimize damage to the outboard motor and boat transom only when an obstruction is encountered while running at speeds under 5 M.P.H in the forward direction. As it encounters an obstruction momentum causes motor to deflect and rotate up to 45 degrees to slide over the obstruction. A drawbar spring is incorporated in the unit to help return the motor to its normal position. The drawbar spring also holds the motor at the normal position while operating in the reverse direction at low R.P.M. The BA-130 is not designed to encounter obstructions while the boat is being operated in the reverse direction.
The unit is pre-drilled with the standard B.I.A. hole pattern. For motors that have clamps with thumb screws, CMC part #13022 Transom Clamp Adapter is required. Product weight is 28 pounds (shipping weight is 33 pounds) and carries a limited 1-year warranty against defects in workmanship.
WARNING: The BA-130 is rated for outboard motors up to a maximum of 130 H.P. Do not encounter obstructions at speeds over 5 M.P.H and only in the forward direction. The BA-130 is not designed to encounter obstructions while the boat is being operated in the reverse direction.Read CMC Marine's Warranty Policy Here
|OEM/Bulk||Product Name||Distributor Packaged|
|13003||CMC, BA-130 Breakaway Unit|
- Maximum Horse Power: 130
- Recommended Speed: Less Than 5 mph
- Direction: Forward Only
- Weight: 28 lbs
Bought a new Yamaha F25 with power trim and tilt but didn't realize there was no break away mechanism. Motors and boats to expensive to tear up on stumps and such so I purchased b/a 130 bolted right up no problem works good I feel a lot more at ease sliding through shallow water. Seems heavy built and made to last.
I am very pleased with my purchase and have no regrets. The CMC BA-130 is a high quality item built to last a lifetime. My purchase with TH Marine went smoothly and I would recommend them to anyone & everyone. I look forward to dealing with TH Marine in the future.
Have not received yet
