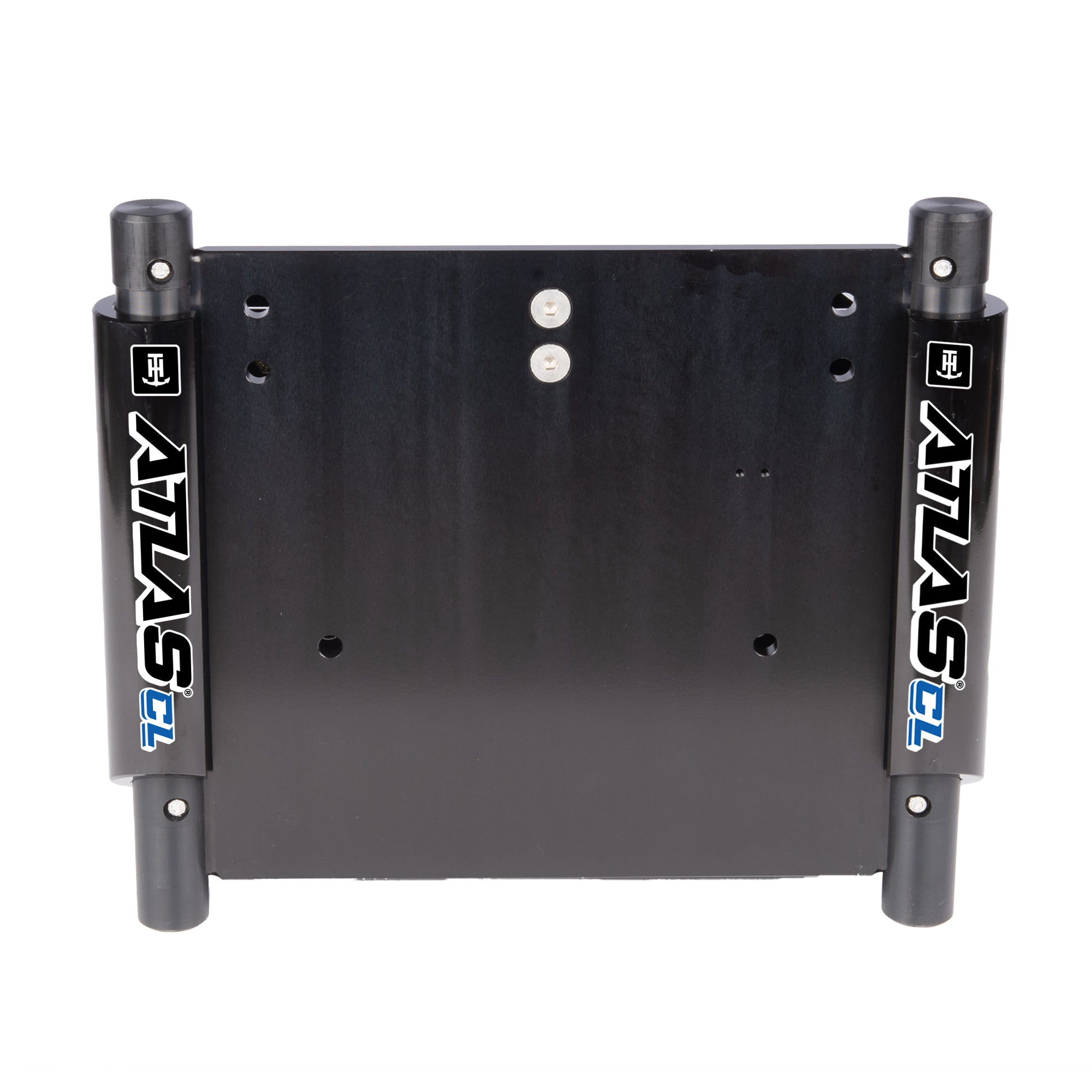

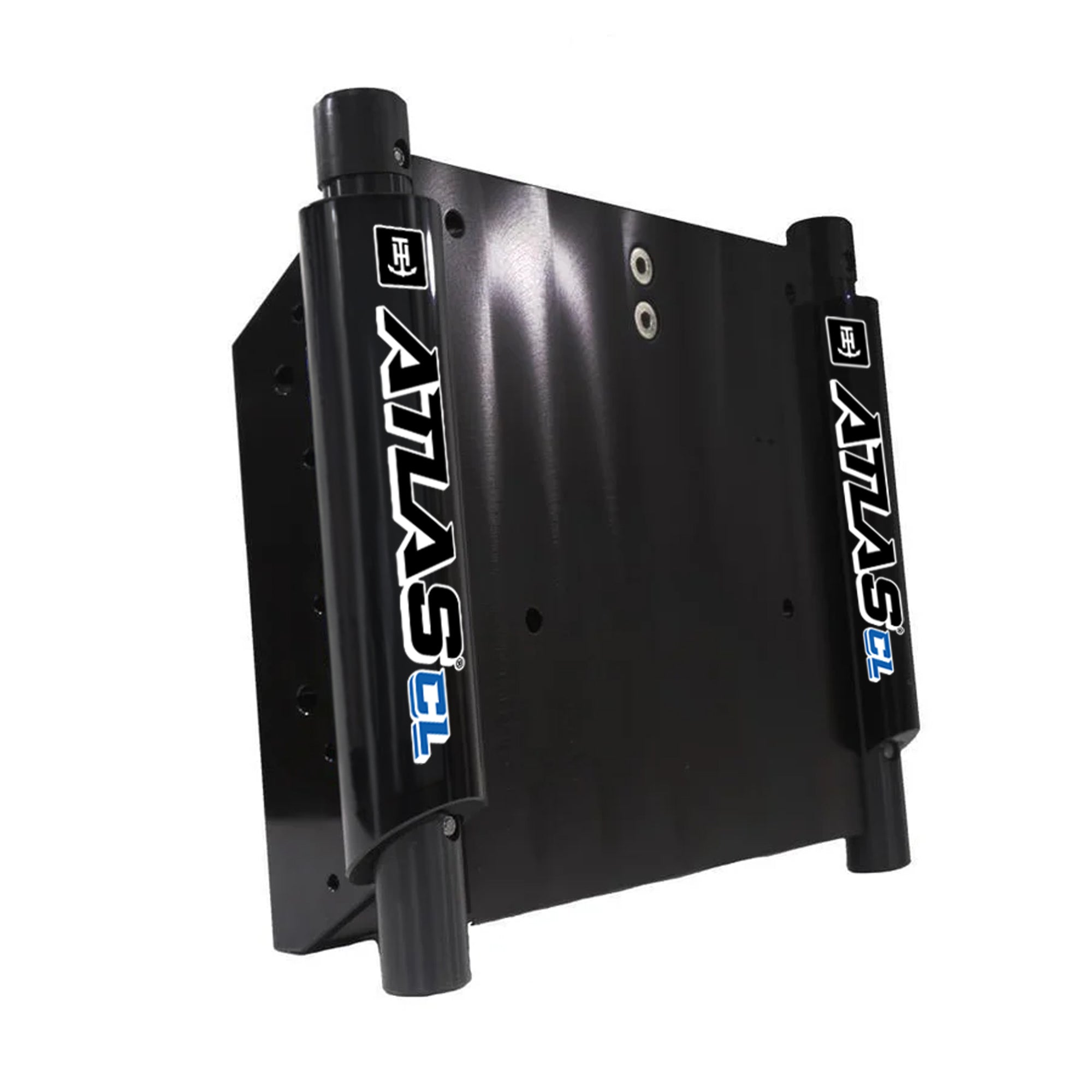

Black Atlas Series Hydraulic Jack Plate

SKU: AHJ-8V-B-DP
$2,185.99

Features

NOTE: SOME JACK PLATES ARE MADE TO ORDER, WHICH CAN TAKE UP TO 4-6 WEEKS. PLEASE CONTACT US FOR STOCK INFORMATION

Featuring advanced hydraulic technology, this Black Atlas Series Jack Plate allows you to effortlessly adjust the height of your outboard motor. Experience seamless and precise control over your boat's trim and tilt, allowing you to adapt to varying water conditions and maximize performance.

The Atlas revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 HP or 625 pounds, on the market today.

All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too..lifting from bottom to top in 8 seconds!

Transom side of the atlas is 16 3/8" wide x 12 1/2" tall.

NOTE: mounting bolts are not included

OEM/Bulk Product Name Distributor Packaged
AHJ-4V-B-DP Atlas Series™ Hydraulic Jack Plate - 4" Setback - Black AHJ-4V-DP
AHJ-6V-B-DP Atlas Series™ Hydraulic Jack Plate - 6" Setback-Black AHJ-6V-DP
AHJ-8V-B-DP Atlas Series™ Hydraulic Jack Plate - 8" Setback-Black AHJ-8V-DP
AHJ-10V-B-DP Atlas Series™ Hydraulic Jack Plate - 10" Setback-Black AHJ-10V-DP
AHJ-12V-B-DP Atlas Hydraulic Jack Plate - 12" Setback - Weight 66lbs-Black AHJ-12V-DP
AHJ-14V-B-DP Atlas Series™ Hydraulic Jack Plate - 14" Setback-Black AHJ-14V-B-DP

Please note: The yellow ruler sticker is just a visual reference for the driver.  On the Heavy Duty Atlas jack plates the yellow ruler sticker will show approximately 4 ¼” of lift. That is due to the black polymer rods being taller on the Heavy Duty Atlas jack plates and the 1” of lift that is built in to the plate.  The standard Atlas jack plates will show 5” of lift, due to the 1” of lift that is built in to the plate.  To confirm the 5 ¾” of hydraulic lift just raise the jack plate all the way up and measure the hydraulic actuator piston.

Specs

  • Transom-facing dimensions: 16-3/8" wide x 12-1/2" tall
  • Includes: Relay harness and rocker switch
  • For fitment help: Contact your boat manufacturer or local dealer for setback recommendation for your particular boat and also the affects adding a jack plate can have on your boat
